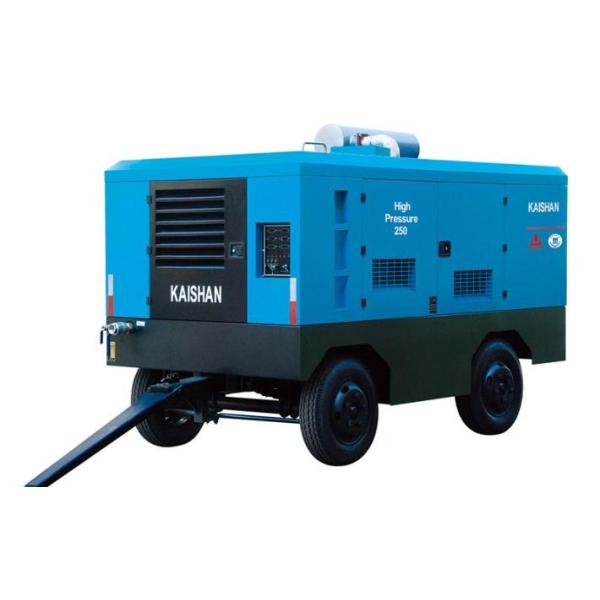

KAISHAN DIESEL PORTABLE AIR COMPRESSOR
Mountain air compressor / Kaishan compressor / pioneer brand air compressor / Mountain / Mountain screw machine screw air compressor
Mobile screw air compressor is widely used in mining, water conservancy, transportation, shipbuilding, urban construction, energy, military and other industries. In Europe and the United States and other developed countries, power with mobile air compressor, can be said that 100% screw air compressor. In our country, mobile screw air compressor is replacing other kinds of air compressor with astonishing speed.
This is because the screw compressor has the following main advantages:
1, high reliability: compressor parts less, no wearing parts, so it is reliable, long life, overhaul interval up to 4~8 hours.
2, easy operation and maintenance: high degree of automation, operators do not have to go through a long period of professional training, unmanned operation can be achieved.
3, balance and good: no unbalanced inertia force can be smoothly at high speed, can be realized without the basic operation, especially suitable for use as a portable compressor, small volume, light weight, small occupation area.
4, strong adaptability: with the characteristics of forced gas transmission, volume flow almost unaffected by exhaust pressure, in a wide range of speed can maintain high efficiency.
Kaishan brand electric mobile screw compressor, power range 11~250kW, exhaust coverage to 40m3/min. Each basic type can be based on user needs into different exhaust volume, different exhaust pressure of a series of products.
| Diesel portable air compressor parameter |
| Type | Flow m³/min | Pressure Mpa | Diesel type | Overall mm |
| *LGCY-6/7 | 6 | 0.7 | YCD4B22-95 | 3750×1920×1700 |
| *LGCY-7.5/7 | 7.5 | 0.7 | YC4D80-K20 | 3900×1920×1700 |
| *LGCY-9/7 | 9 | 0.7 | YC4D95Z-K20 | 3900×1920×1700 |
| *LGCY-10/7 | 10 | 0.7 | YC4D95Z-K20 | 3900×1920×1700 |
| *LGCY-10/10 | 10 | 1 | 4BTA3.9-C125 | 3900×1920×1900 |
| *LGCY-8.5/14 | 8.5 | 1.4 | 4BTA3.9-C125 | 3900×1920×1900 |
| *LGCY-12/7 | 12 | 0.7 | 4BTA3.9-C125 | 3900×1980×1900 |
| *LGCY-12/7A | 12 | 0.7 | YC4A125Z-T21 | 4000×1980×1900 |
| *LGCY-9/14 | 9 | 1.4 | YC6B150Z-K20 | 4080×1980×2350 |
| *LGCY-10/13 | 10 | 1.3 | YC6B150Z-K20 | 4080×1980×2350 |
| *LGCY-12/10 | 12 | 1 | YC6B150Z-K20 | 4080×1980×2350 |
| *LGCY-12/10Q | 12 | 1 | QC6108ZG | 4080×1980×2350 |
| *LGCY-12/12 | 12 | 1.2 | EQ6BT5.9-C160 | 4080×1980×2350 |
| *LGCY-12/13 | 12 | 1.3 | 6BTA5.9-C180 | 4080×1980×2350 |
| LGCY-13/13 | 13 | 1.3 | 6BTA5.9-C180 | 3450×1520×2220 |
| LGCY-13/13A | 13 | 1.3 | YC6A180Z-T21 | 3450×1520×2220 |
| LGCY-15/13 | 15 | 1.3 | WD415.23 | 3380×1650×2500 |
| LGCY-15/13A | 15 | 1.3 | YC6A240-20 | 3380×1650×2500 |
| LGCY-17/7 | 17 | 0.7 | 6BTA5.9-C180 | 3380×1640×2350 |
| LGCY-13/17 | 13 | 1.7 | 6CTA8.3-C215 | 3780×1980×2350 |
| LGCY-16/13 | 16 | 1.3 | 6CTA8.3-C215 | 3980×1800×2450 |
| LGCY-17/14.5 | 17 | 1.45 | 6CTA8.3-C260 | 3980×1800×2450 |
| LGCY-16/17 | 16 | 1.7 | 6CTA8.3-C260 | 3980×1800×2450 |
| LGCY-22/8 | 22 | 0.8 | 6CTA8.3-C260 | 4580×1950×2600 |
| LGCY-22/13 | 22 | 1.3 | YC6M340L-K20 | 4580×1950×2600 |
| LGCY-22/13K | 22 | 1.3 | 6LTAA8.9-C325 | 4580×1950×2600 |
| LGCY-27/10 | 27 | 1 | YC6M340L-K20 | 4600×1950×2850 |
| LGCY-32/10 | 32 | 1 | YC6M395L-K20 | 4600×1950×2850 |
| KSCY-14/12 | 14 | 1.2 | 6BTA5.9-C180 | 3980×1800×2100 |
| LGCY-18/19 | 18 | 1.9 | 6CTA8.3-C260 | 3980×1800×2650 |
| LGCY-18/19A | 18 | 1.9 | YC6M260L-K20 | 3980×1800×2650 |
| LGCY-22/20 | 22 | 2 | 6LTAA8.9-C325 | 4600×1950×2850 |
| LGCY-22/20 | 22 | 2 | YC6M340L-K20 | 4600×1950×2850 |
| LGCY-26/20 | 26 | 2 | 6LTAA8.9-C360 | 4600×1950×2850 |
| LGCY-27/20 | 27 | 2 | YC6M395L-K20 | 4600×1950×2850 |
| LGCY-27/22 | 27 | 2.2 | NTA855-P400 | 4600×1950×2850 |
| LGCY-30/17 | 30 | 1.7 | YC6M395L-K20 | 4600×1950×2850 |
| Remark:* means two wheels |
